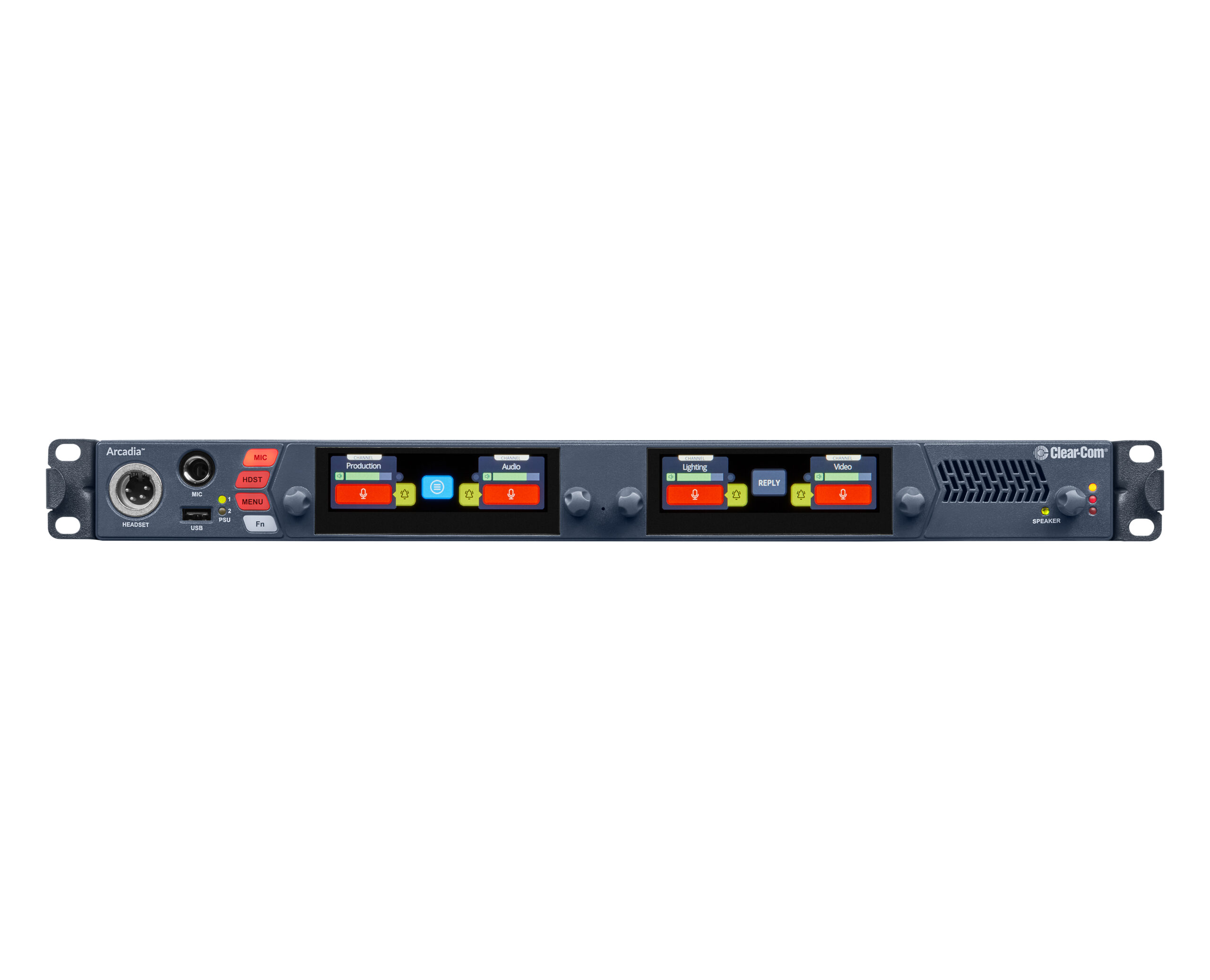

Clear-Com Arcadia Central Station w/ 32 Port License

Description

Arcadia Central Station

Combined Wired and Wireless Intercom
I.V. Direct Clear-Com Global Interfacing
            – LQ
            – Eclipse E-IPA
            – Arcadia

Local Dante and Analog Interfacing
CCM™ browser setup, configuration & monitoring
Scalable Licensed Port capacity
Front panel color touch screen with encoders for control and configuration
Plug-and-go central discovery and pairing

Capacity

FreeSpeak Wireless Intercom

(10) E1 Transceivers (1.9, 2.4 GHz)
(32) IP Transceivers (1.9, 5 GHz)
(64) Beltpacks (1.9, 2.4, 5 GHz)
HelixNet Wired Intercom

(24) Enabled Channels
(24) Powerline Devices
(128) User Stations (Beltpack, Speaker- & Remote)

• I.V. Direct Clear-Com Interface

(16) I.V. Direct Ports
Dante Audio Network Interfaces

(64) Dante Ports

Configuration

• (168) Licensed Ports
– FreeSpeak Beltpack
– HelixNet Enabled Channel
– I.V. Direct Port
– Dante Port
(100) Channels
(100) Groups
(200) Roles for FreeSpeak & HelixNet

Connectivity

(8) Four-Wire – 1 for PGM/SA
(4) 2-Wire – 550mA per pair
(2) GPI Optically Isolated
(4) GPO Relay
(2) FreeSpeak E1 – RJ45/SFP switchable
(4) LAN – (2) RJ45, (2) SFP;
Assignable to Management, AES67,
HelixNet, Dante Primary and Secondary
Footnotes:

1.9 GHz E1 and IPT transceivers should not overlap on the same system. Beltpacks will not roam between E1 and IPT Transceivers.

Requires Arcadia with sufficient number of Licensed Ports.
